Simple stand for grinders


A very simple stand for the grinder can be made from just a few pieces of a rectangular profile in a couple of tens of minutes. And at the end you get an excellent cutting machine, with which you can cut metal billets smoothly and quickly.

Need for a cutting machine


  • Rectangular profile.
  • Steel rectangular plate for the base.
  • Spring.
  • Bolt with nut.
  • Rectangular chipboard.

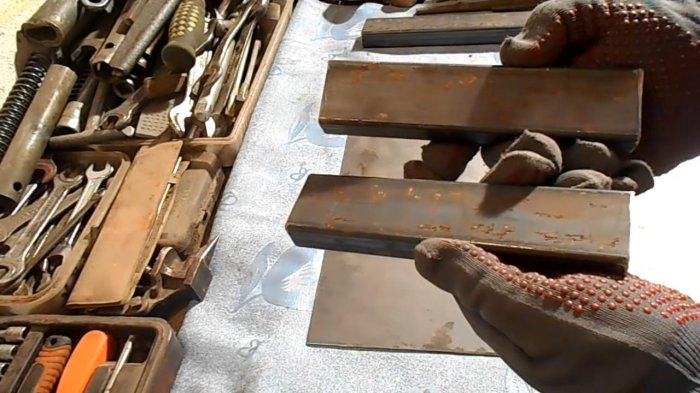

Cut out the blanks from the profile of angle grinders: two small equal segments and one long one for the handle.
Simple stand for grinders

Take two pieces of the profile.
Simple stand for grinders

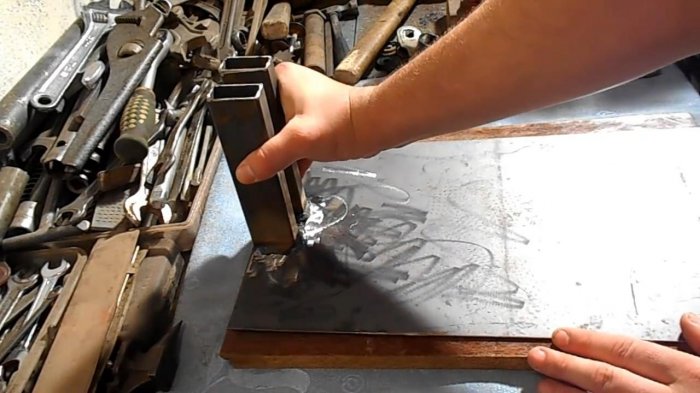

Install them on a rectangular plate. The distance between them is slightly greater than the thickness of the width of the profile.
Simple stand for grinders

Weld to steel plate.
Simple stand for grinders

In order for the stand to have more weight and to be stable, we install all this on a rectangle of chipboard. Of course, instead of all this, you could immediately take a thick steel plate.
Simple stand for grinders

We fasten the steel base to the wooden one in several places, after making holes in the steel plate.
Simple stand for grinders

To attach the handle, you must drill a through hole in all three pieces. See photo:
Simple stand for grinders

Drill a bolt hole.
Simple stand for grinders

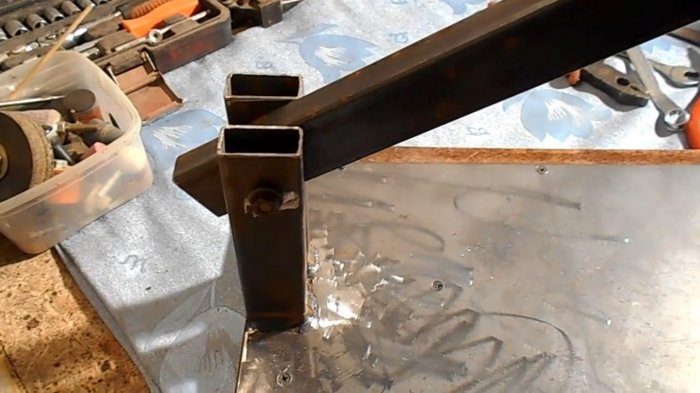

Insert the bolt and fix the nut.
Simple stand for grinders

To the Bulgarian itself could rise up to its original position, you must enter the return spring into the system. Similar can be found in the brake system of the car.
Simple stand for grinders

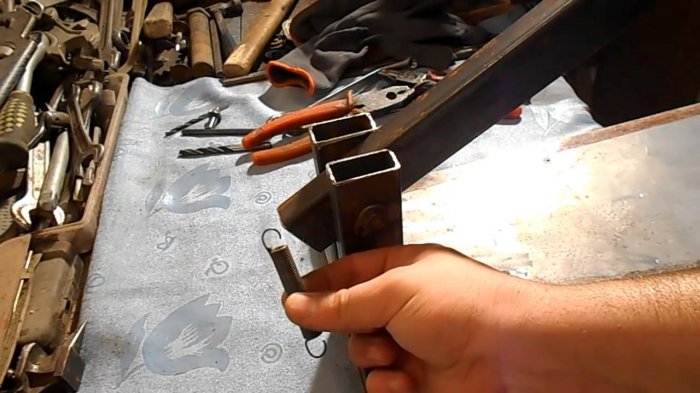

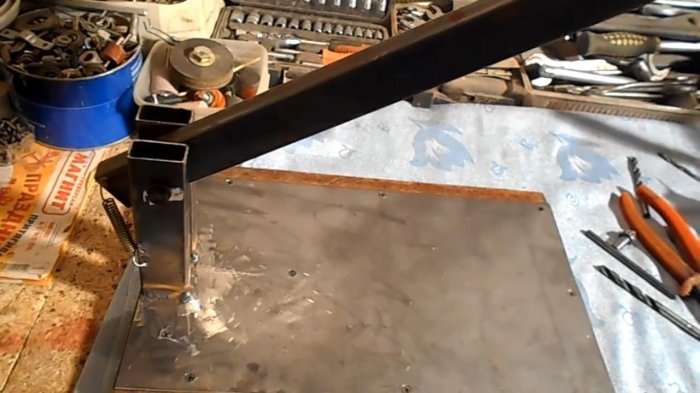

We drill two holes and hang the spring. If the lifting force is insufficient - enter another spring.
Simple stand for grinders

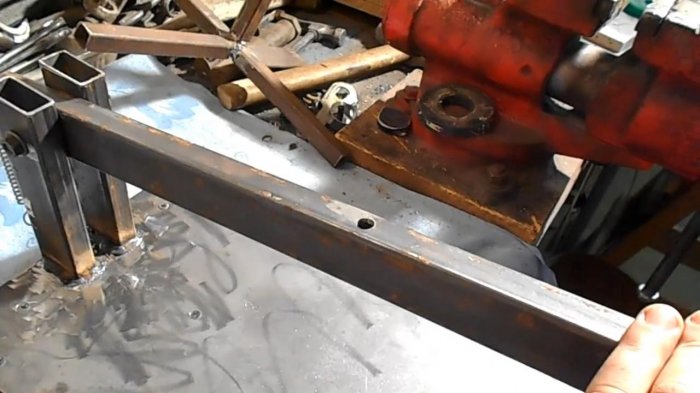

Now how to hang a grinder, you must make a hole in the handle of the profile. Pre-try on the grinder to the place of installation.
Simple stand for grinders

Simple stand for grinders

Screw the grinder. There is a threaded hole in almost all angle grinders where the handle is screwed.
Simple stand for grinders

That's all - the cutting machine is ready. The design is very stable and reliable. Cuts fine.
Simple stand for grinders

In this example, a small Bulgarian was used.
Simple stand for grinders

Simple stand for grinders

At any time the tool can be removed and applied as usual.
Such a stand exactly come in handy. It will ease your work when we say you need to make a lot of vertical cuts.
The useful thing, the minimum cost and time - the effect is obvious.
Also for the revision, it would not be superfluous to make a downward movement limiter.
