Making a USB outlet

Agree, it is very convenient when next to a normal outlet there is a USB jack for charging gadgets. No need to charge the mains socket.
Now almost all portable technology is charging from USB ports and this is a big plus, since do not have to do dozens of different connectors for all devices.
I'll show you how to plug the charger into an AC outlet.
Making a USB outlet

Making sockets with USB output


First you need to find a USB outlet. I'll take the adapter and cut it off.
Making a USB outlet

I will disassemble the connector and here it is - the future USB outlet.
Making a USB outlet

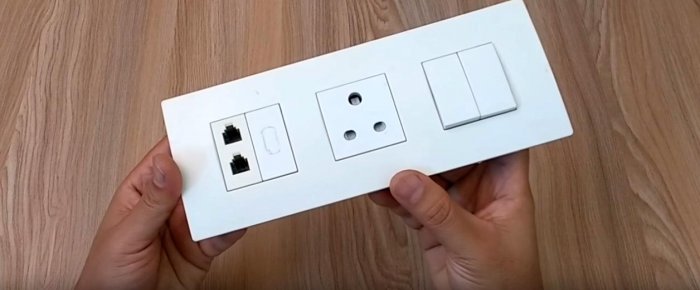

I'll install the connector next to the phone sockets, because there's room here. You can choose another option. We attach the connector, draw a pencil.
Making a USB outlet

Making a USB outlet

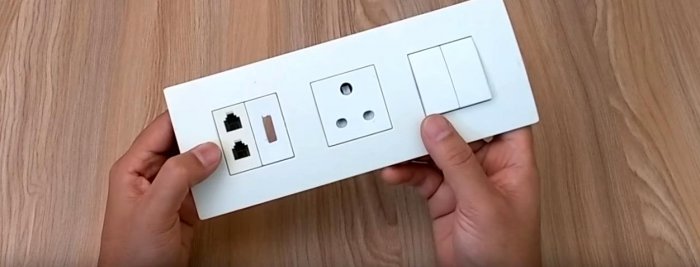

Next, use a mini circular saw to cut out the hole, making an allowance for the inside of the hole so that the nest does not fall inward. This can be done with a flat-head screwdriver hot on fire. Or otherwise.
Making a USB outlet

Making a USB outlet

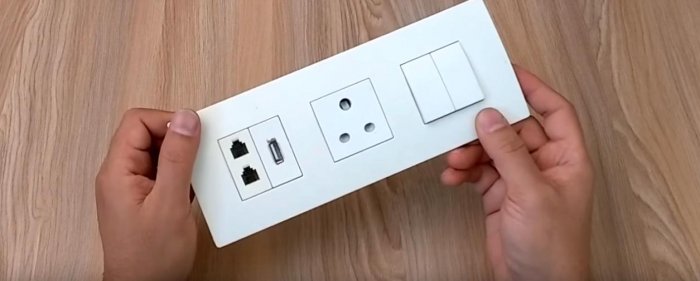

Insert the USB connector. I hope you did not go too far and everything went right. It will be great if it comes in tight and does not hang out.
Making a USB outlet

On the back we fix hot glue. Must keep everything securely.
Making a USB outlet

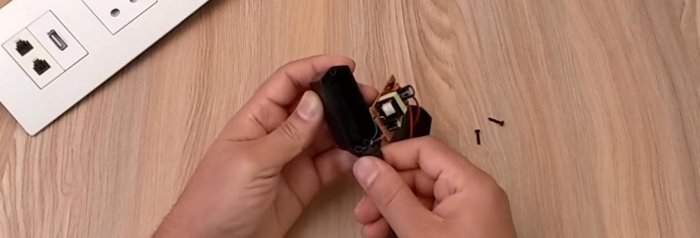

Take an unnecessary charger for 5 V. It is desirable with a load capacity of one ampere. And parse it.
Making a USB outlet

We pull out the charger board.
Making a USB outlet

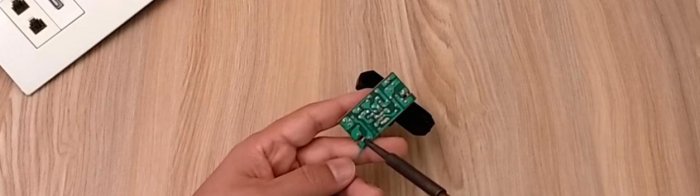

We unsolder wires from it. Two network and two five-volt.
Making a USB outlet

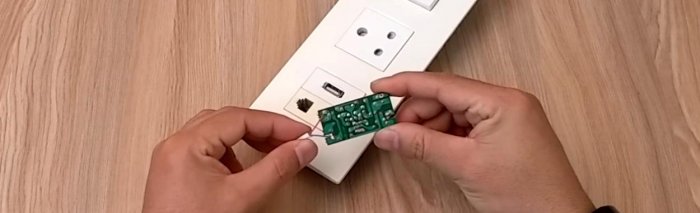

We connect to our outlet with USB output.
Making a USB outlet

Solder the wires to the USB. Plus to plus, minus to minus. Be careful - do not confuse.
Making a USB outlet

Solder network, it is desirable to take them thicker.
Making a USB outlet

The board, from the exit side of the contacts, is plentifully poured with hot glue and glued to the very body of the outlet. Hot glue does not conduct electricity and there can be no closures.
